Capable of time-frequency signal measurement and calibration functions
Can perform automatic or timed measurements, and generate test reports and curves
Equipped with a frequency purifier to improve the accuracy of the reference standard
Simultaneous measurement of multiple signals
Data is saved in real-time as needed

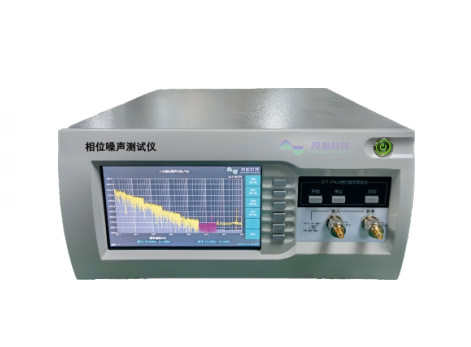

Supports various test types such as phase noise testing, stability testing, and frequency difference testing
Outstanding performance:
10MHz phase noise: <135dBc@1Hz; <165dBc@10kHz
Allan variance for standard: <2E-14/s; <3E-16/1000s
Allan variance for mutual correlation: <3E-15/s; <3E-16/1000s
Supports data storage and exportation
Supports combined time and clock testing, meeting the requirements of different testing environments
Remote connection test software can be installed on a variety of operating systems
Supports manual, automatic, and timed testing methods
Supports NTP, PTP response capability testing

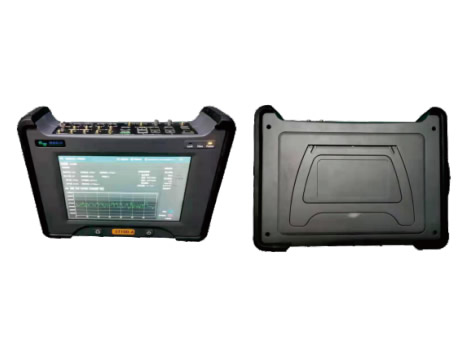

Handheld terminal, 10-inch touch screen LCD local display and control, easy to operate, three steps to reach
Supports statistical analysis such as RMS, standard deviation, etc.
Can simultaneously measure parameters such as frequency stability, aging, phase drift, etc
Measurement frequency range: 0.5MHz~30MHz; 100MHz±10MHz
Frequency Stability:<2E-14 (typical value: 1.2E-14)

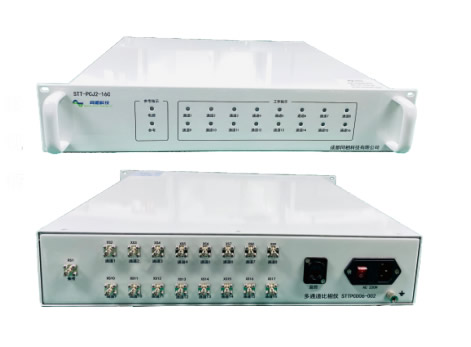

Multi channel: Standard configuration includes 4 channels, expandable to 16 channels(including reference input)
The measured signal and the reference signal do not need to be on the same frequency
Sampling time: 1ms~1000s
Equipped with an upper computer, the measurement results are displayed and stored in real-time
Any two channels can be selected for time difference measurement and analysis
Can automatically or periodically measure and generate test reports and curves
Built in frequency source, optional access to external clock signal
Simultaneous measurement of multiple signals
Real time on-demand data storage
