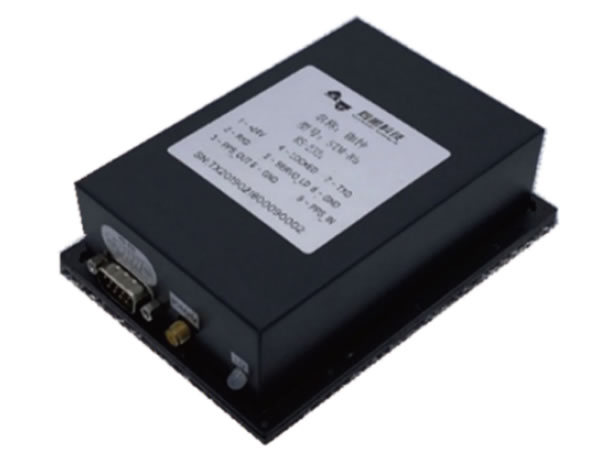

1PPS Taming Function
Fast lock and tame, frequency accuracy better than 5E-11 within
300 seconds after power on
High stability: 6E-13/s
Low aging rate: ≤2.0E-12/day
Wide temperature operation
High-resolution digital frequency adjustment (5E-13)

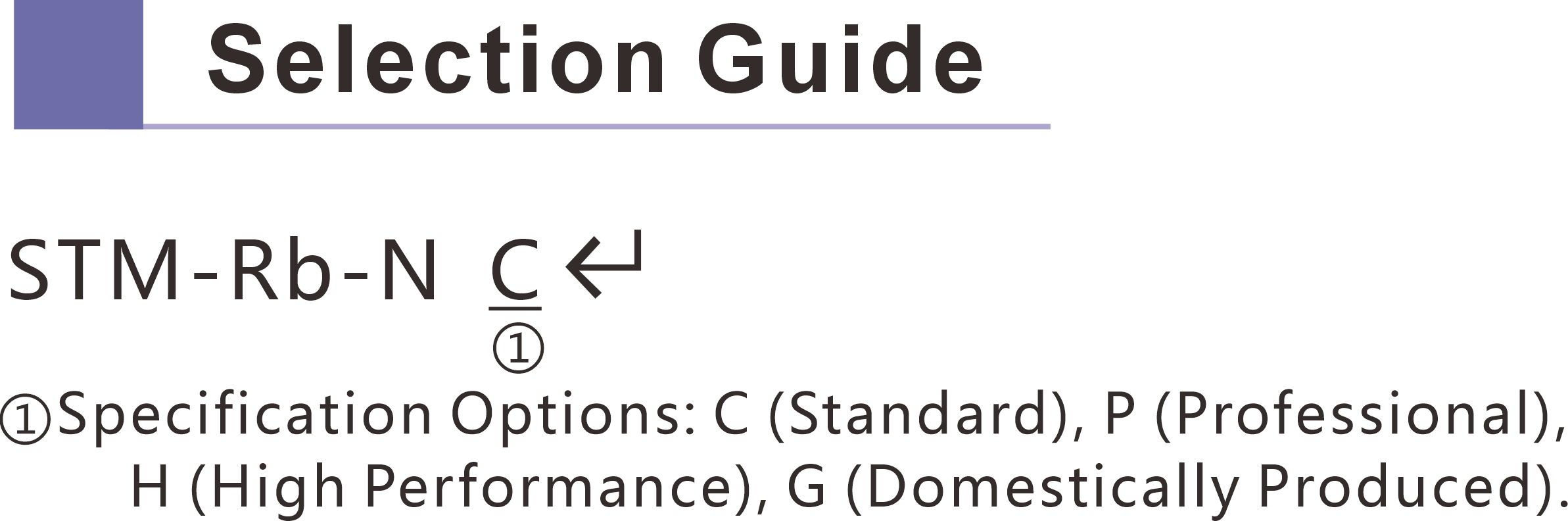

Product Features | Specification name | Indicator parameters | Remark | |
RF Output | Frequency | 10MHz | 1 sine wave output, SMA interface | |
Output Power | 11±2dBm | Load impedance 50Ω@10MHz | ||
Factory accuracy | ＜5E-11 | +25℃ | ||
Short-term stability | Conventional model C: ＜5.0E-12/1s; ＜4.0E-12/10s; ＜3.0E-12/100s | |||
Professional P: ＜3.0E-12/1s; ＜2.0E-12/10s; ＜6.0E-13/100s | ||||
High performance H: ＜ 6.0 E-13/1s; ＜ 6.0E -13 / 10s; ＜5.0E-13/100s | ||||
Domestic G:<5.0E-12/1s; <4.0E-12/10s; <3.0E-12/100s | ||||
Phase Noise | Regular model C: 1Hz ≤-95dBc/Hz 10Hz ≤-130dBc/Hz 100Hz ≤-145dBc/Hz 1kHz ≤-150dBc/Hz 10kHz ≤-155dBc/Hz | Professional P: 1Hz ≤-100dBc/Hz 10Hz ≤-132dBc/Hz 100Hz ≤-150dBc/Hz 1kHz ≤-158dBc/Hz 10kHz ≤-160dBc/Hz | ||
High Performance H: 1Hz ≤-115dBc/Hz 10Hz ≤-135dBc/Hz 100Hz ≤-150dBc/Hz 1kHz ≤- 158dBc/Hz 10kHz ≤-160dBc/Hz | Domestic Model G: 1Hz ≤-95dBc/Hz 10Hz ≤-130dBc/Hz 100Hz ≤-145dBc/Hz 1kHz ≤-150dBc/Hz 10kHz ≤-155dBc/Hz | |||
Timekeeping accuracy | ＜0.5us/24h(P/H type) | ＜0.8us/24h(C/G type) | ||
Frequency reproducibility | ＜ ± 2 E-11 (P/H type) | ＜±5E-11(C/G type) | ||
aging | ＜±2.0E-12/day(P/H type) | ＜±5.0E-12/day(C/G type) | ||
Harmonic | ＜-40dBc | |||
Spurious | ＜-80dBc | |||
Frequency Temperature Characteristics | <3.0E-10 (0℃ to 50℃); <6.0E-10 (others) | |||
1PPS output | Rise time | ＜2ns | ||
Pulse Width | 500us~500ms (default 100ms) | |||
Level | ＞4.5V（1MΩ/15pF load） | |||
PPS Taming | PPS Input | 3.3V~+5.5V | ||
Taming accuracy | <1E-12 | Power on for 2 hours, taming time is more than 1 day | ||
Monitoring and Control | Frequency modulation accuracy | <5.0E-13 | Adjustment range: ±1.0E-6 | |
Lock Time | ≤ 3 min. | +25°C | ||
Condition Monitoring | Rubidium clock lock and discipline lock indication | High level lock (5V) Low level unlock (0V) | ||
Communication monitoring | RS-232 | |||
Supply voltage | Input voltage | +16 ~ 28 VDC | ||
Maximum current | 1.4 A (+25°C) | |||
Steady-state current | <0.5A (+25°C) | |||
Power supply interface | DB9 Male | |||
environment | Operating temperature | -40℃~+60℃ | ||
Storage temperature | -55℃~+85℃ | |||
Relative humidity | ≤85% non-condensing (working state) | |||
Appearance | weight | 490g | ||

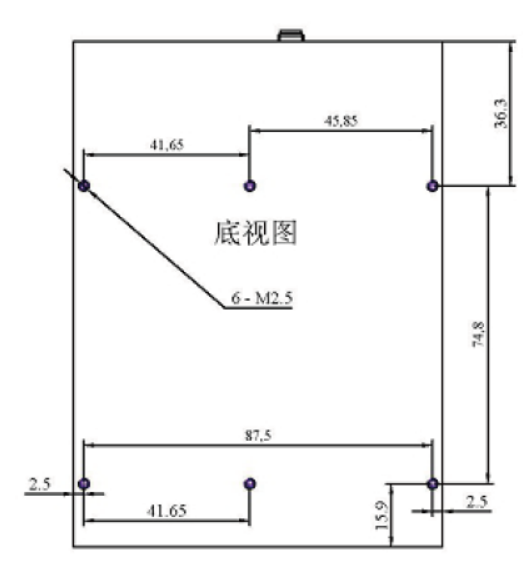

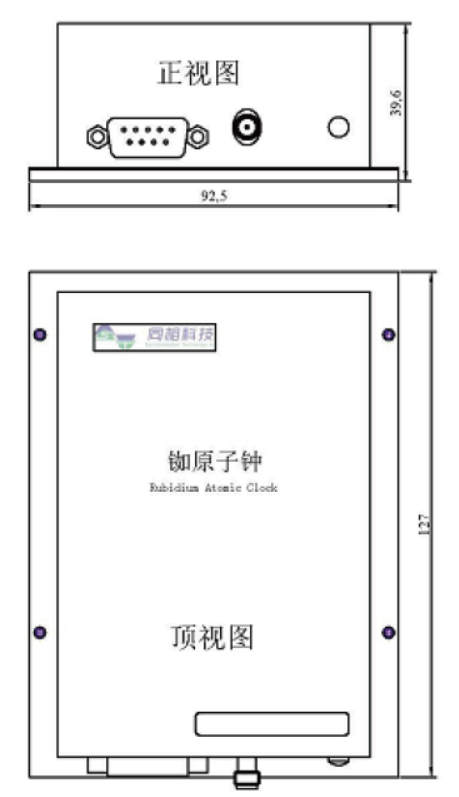

size | 127mm×92.5mm×39.6mm | |||
