Support interference signal and deception signal detection, and output alarm information
Can receive multiple time references and has the ability to measure and monitor time references

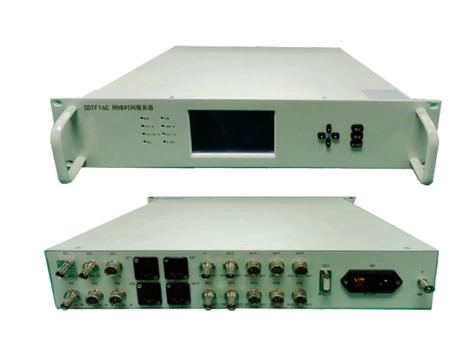

Equipped with LCD time display (year/month/day/day/hour/minute/second) and parameter configuration function
Built in high-performance frequency source (rubidium clock or crystal oscillator) with automatic frequency calibration function
Multiple time codes, pulses, frequencies, and other signals can be selected for output

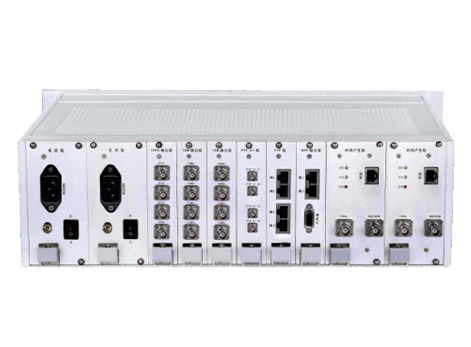

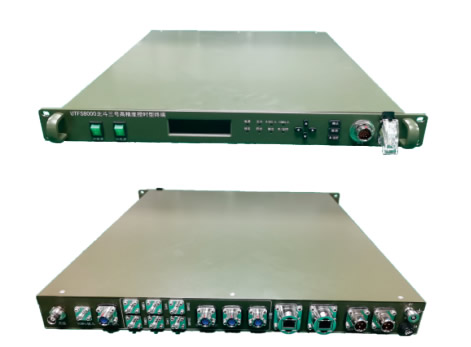

Adapt to user needs and provide various forms of products 1U/2U/3U
Equipped with fault alarm prompt function and capable of monitoring device status through serial port/network
Product Features | Specification name | Indicator parameters | Remarks | |||
Crystal Oscillator | Rubidium clock | National production | ||||
Timekeeping performance | Frequency accuracy | ≤5E-12 | ≤5E-13 | ≤1E-12 | Taming 24 hours | |
Timekeeping accuracy | 20us/day | 0.5us/day | 1us/day | |||
Input precision | BeiDou(COMPASS)/GPS | 30ns | 10ns | 20ns | The default input is 1 grid. | |
GLONASS | 50ns (optional) | 20ns (optional) | 30ns (optional) | |||
IRIG-B(DC) | 100ns | 20ns | 20ns | |||
IRIG-B(AC) | 5us (optional) | 1us (optional) | 5us (optional) | |||
1PPS/1PPS+TOD | 100ns | 10ns | 10ns | |||
PTP(1588V2) | 50ns | 20ns | 40ns | |||
PTP_E1 | 1us(optional) | 1us(optional) | ---- | |||
5/10MHz | Optional | Optional | Optional | |||
Output accuracy | 1PPS/xPPS | 30ns | 10ns | 10ns | Output default 2 channels, expandable multiple channels | |
IRIG-B(DC) | 100ns | 20ns | 20ns | |||
IRIG-B(AC) | 5us(optional) | 1us(optional) | 5us(optional) | |||
1PPS/1PPS+TOD | 100ns | 5ns | 10ns | |||
PTP (1588v2) | 50ns | 10ns | 40ns | |||
PTP_E1 | 1us(optional) | 1us(optional) | ---- | |||
NTP | 1ms | 0.05ms | 0.05ms | |||
10MHz | 1Hz | ＜-90dBc/Hz | <-95dBc/Hz | <-100dBc/Hz | ||
1kHz | <-140dBc/Hz | <-145dBc/Hz | <-150dBc/Hz | Indicator light display | ||
Monitoring and Control | Condition Monitoring | Content Rubidium clock lock, taming lock: lock/lose lock | ||||
Communication monitoring | RJ45 network port (UDP, SNMPv2, WEB) | |||||
Supply voltage | Input voltage | 220VAC | ||||
Power | ≤50W (25℃) | |||||
Power supply interface | 220VAC international plug | |||||
environment | Operating temperature | -20oC ~ +50oC | ||||
Storage temperature | -55oC ~ +85oC | |||||
Weight and size | weight | <15kg | ||||
size | 19-inch standard chassis, 1~4U | |||||
