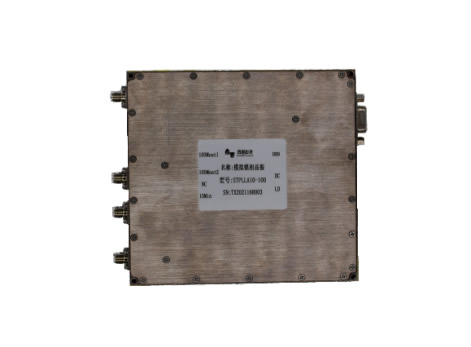

輸入10MHz輸出頻率100MHz（可定制）
附加頻率穩定度優于3E-14/s
附加相位噪聲≤-130dBc/Hz@1Hz，≤-135dBc/Hz@10Hz
輸出頻率可定制
應用領域:設備內信號變換，鎖相環窄帶濾波，時鐘提純等

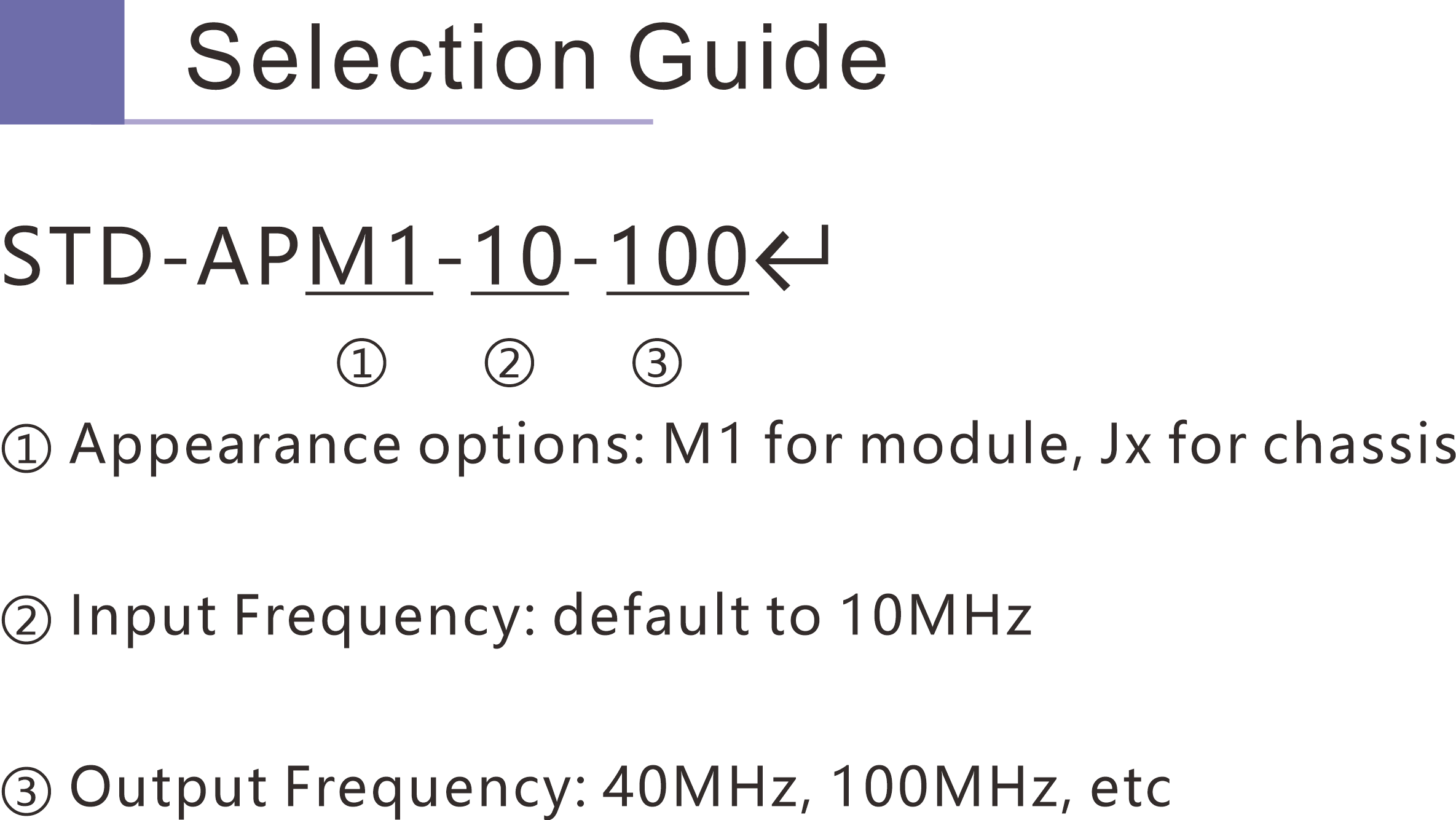

Product Features | Specification name | Indicator parameters | Remarkss | ||
RF Input | Specification | 10-100 | 10-40 | ||
Input frequency | 10MHz | 10MHz | The tuning range of the built-in high-stability crystal oscillator is ±5E-7, and the input 10MHz accuracy must be less than this range | ||
Input Power | 5dBm~15dBm | 5dBm~15dBm | |||
Harmonics/Spurious | ≤-30dBc/≤-70dBc | ≤-30dBc/≤-70dBc | |||
Minimum accuracy requirement | ≤ ± 3E-7 | ≤ ± 3E-7 | |||
Minimum stability requirement | ≤ ± 1E-7 | ≤ ± 1E-7 | |||
RF Output | Output frequency | 100MHz (1 channel) | 40MHz (1 channel) | After locking, the stability and accuracy are the same as the external reference. When not locked, the phase-locked loop is in scanning state. | |
Output Power | >7dBm | >7dBm | |||
Harmonics/Spurious | ≤-30dBc/≤-80dBc | ≤-30dBc/≤-80dBc | |||
Frequency stability | 1s | ≤3E-14 | ≤3E-14 | Allen variance Typical value external reference additional stability | |
10s | ≤8E-15 | ≤8E-15 | |||
Residual Phase Noise | 1Hz | Same as reference (the phase-locked loop's own floor is -130dBc/Hz) | Same as reference (the phase-locked loop's own floor is -130dBc/Hz) | The PLL bandwidth is 50 to 100 MHz. If the reference crystal phase noise is not better than -150 at 100 Hz, the phase noise at 100 Hz will be affected. | |
10Hz | Same as reference (the phase-locked loop's own floor is -135dBc/Hz) | Same as reference (the phase-locked loop's own floor is -135dBc/Hz) | |||
100Hz | ≤-130dBc/Hz | ≤-128dBc/Hz | |||
1kHz | ≤-160dBc/Hz | ≤-155dBc/Hz | |||
10kHz | ≤-165dBc/Hz | ≤-15dBc/Hz | |||
Supply voltage | Supply voltage | 12VDC (Vcc±5%) | |||
Power consumption | Module:<10W | ||||
Power interface | DB9 Female | ||||
environment | Operating temperature | -20 oC ~ +50 oC | |||
Storage temperature | -55 oC ~ +85 oC | ||||
Weight and Size | Weight | <1kg | |||
Size | 129.5*120*22mm (excluding connector) | ||||
