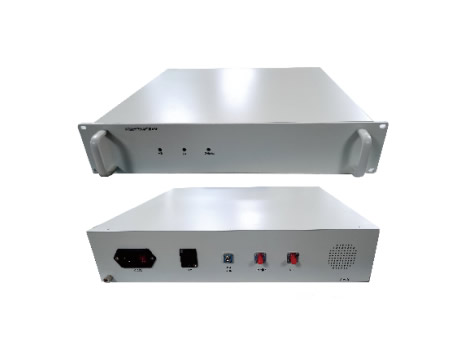

Lossless transmission of time-frequency signals
Automatic delay compensation, dynamic calibration
Frequency transmission stability<2E-14/s,<5E-17/day

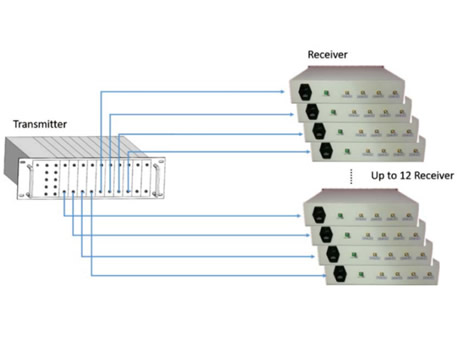

Support point-to-point or point to many transmission
Suitable for multi-user networking, radar array and other occasions
Product Features | Specification name | Indicator parameters | |
Multi-channel version | High performance version | ||
Local input | Input signal | 10MHz 1 -Channel SMA 1PPS 1- Channel SMA | 10MHz 1 -Channel SMA 1 PPS 1 * 1SMA |
Output signal | RF Output | 10MHz 1-Channel SMA 1PPS 1-Channel SMA | 10MHz 1-Channel SMA 100MHz 1-Channel SMA 1PPS 1-Channel SMA |
Frequency transmission stability | 100MHz | < 6E-14/s, <SE-17/day | < 2E-14/s, <5E-17/day |
10MHz | < 4E-14/s, <1E-16/day | < 2.5E-14/s, <5E-17/day | |
Transmitted additional phase noise | 10MHz | <- 120dBc@1Hz | <- 120dBc@1Hz |
100MHz | <- 100dBc@1Hz | < -100dBc@1Hz | |
Time transfer uncertainty | 1PPS | 200ps | 100ps |
Fiber Optic Interface | interface | FC-APC | FC-APC |
Working wavelength | 1490-1590nm optional | 1490-1590nm optional | |
Transmission distance | 1~50km | 1~80km | |
Automatic lock time | Automatic capture | Lock time < 3 minutes | Lock time < 3 minutes |
Supply voltage | Supply voltage | 220~240 Vac±10 % | 220~240 Vac ±10 % |
Power consumption | < 50 W | < 50W | |
size | Device size | 2U/3U standard chassis | 2U/3U standard chassis |
Monitoring and Control | manage | Network port/serial port | |
Environmental requirements | Operating temperature | -20℃~+50℃ | -20℃~+50℃ |
Storage temperature | -40°C~70°C | -40°C~70°C | |
