Input 10MHz, output frequency 100MHz
Frequency stability better than 5E-13 per 1 second
Phase noise ≤-160dBc/Hz at 1kHz offset

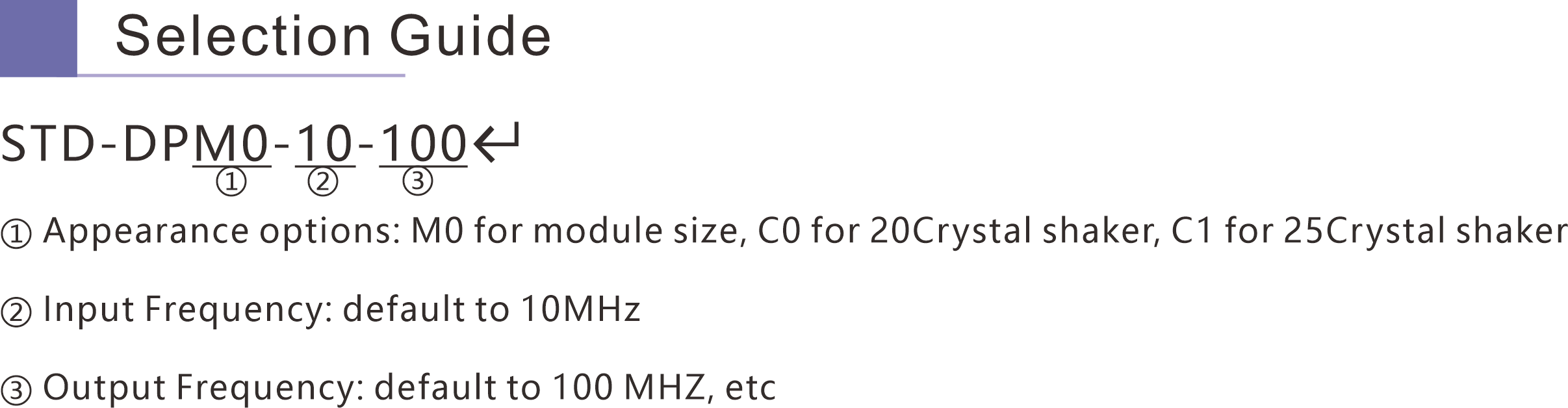

Input and output frequencies are customizable
Application areas: signal frequency conversion, Rubidium
clock phase noise enhancement, narrowband phase-locked
filtering, clock signal purification, etc.
Product Features | Specification name | Indicator parameters (module) | Specification parameters (crystal oscillator) | |
RF Input | Input frequency | 10MHz | 10MHz | |
Input Power | 5dBm~15dBm | 5dBm~15dBm | ||
Harmonics/Spurious | ≤-30dBc/≤-70dBc | ≤-30dBc/≤-70dBc | ||
Minimum accuracy requirement | ≤ ± 3E-7 | ≤ ± 3E-7 | ||
Minimum stability requirement | ≤ ± 1E-7 | ≤ ± 1E-7 | ||
RF Output | Output frequency | 100MHz (1 channel) | 100MHz (1 channel) | |
Output Power | >7dBm | >7dBm | ||
Harmonics/Spurious | ≤-30dBc/≤-80dBc | ≤-30dBc/≤-80dBc | ||
Frequency stability | 1s | ≤5E-13 | ≤5E-13 | |
10s | ≤8E-14 | ≤8E-14 | ||
Residual Phase Noise | 1Hz | Same as reference (the phase-locked loop's own floor is -88dBc/Hz) | Same as reference (the phase-locked loop's own floor is -88dBc/Hz) | |
10Hz | ≤-100dBc/Hz | ≤-100dBc/Hz | ||
100Hz | ≤-130dBc/Hz | ≤-130dBc/Hz | ||
1kHz | ≤-160dBc/Hz | ≤-160dBc/Hz | ||
10kHz | ≤-168dBc/Hz | ≤-168dBc/Hz | ||
Supply voltage | Supply voltage | 12VDC (Vcc±5%) | 12VDC (Vcc±5%) | |
Power consumption | Module: <3W | Module: <3W | ||
Power interface | Feedthrough Capacitor | |||
environment | Operating temperature | -20 oC ~ +50 oC | ||
Storage temperature | -55 oC ~ +85 oC | |||
Weight and Size | Weight | <1kg | ||

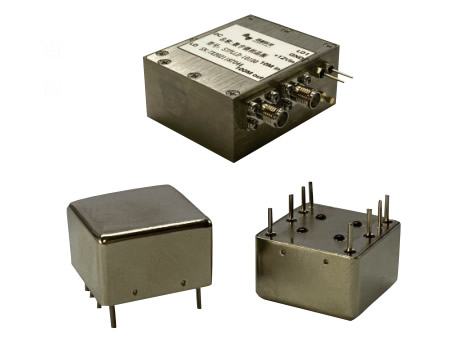

Size | Module: 50*40*22 Crystal: 20*20*12.5 Crystal oscillator: 25.4*25.4*12.7 | |||
