Frequency signal input

Input Frequency

10MHz

Optional rubidium clock or oven-controlled crystal oscillator as internal Frequency source

Input Power

7dBm~13dBm

Harmonic

≤-30dBc

Spurious

≤-70dBc

Time pulse input

Input Frequency

1Hz(1PPS)

Input amplitude

2~6V

Input pulse width

≥20ns

Time reference input

Time reference

Internal receiver/external TOD

External time input interface

Network port or serial port

Input content format

ZDA (including year, month, day, hour, minute, and second)

Frequency signal output

Output Frequency

10MHz(1~4 channels)

Impedance 50 ohms

Output Power

7~13dBm

Harmonic

≤-30dBc

Spurious

≤-80dBc

Synchronous time output

Output Frequency

1Hz(1PPS)

Output Interface

Network port, serial port

Time content format

ZDA (including year, month, day, hour, minute, and second)

Synchronous second pulse output

Pulse Frequency

1pps

Impedance 50 ohms

Output channels

1~4 Channel

Output amplitude

≥2.4V

Pulse Width

1us~10ms

Rising edge

≤2ns

Frequency measurement indicators

Frequency measurement/synchronization indicators

5E-13/1000s

Time measurement indicators

Time measurement/synchronization indicators

≤1ns

Position accuracy

Single point positioning indicator

0.08m/horizontal, 0.1m/vertical

Monitoring Management

Physical Interface

Network port/serial port

Supply voltage

Supply voltage

Chassis: 220VAC (±10%) Module: 5VDC

Power consumption

Chassis: <50W Module: <10W

Power interface

Chassis: International Power plug module: J30J

environment

Operating temperature

-20℃~+50℃

Storage temperature

-55℃~+85℃

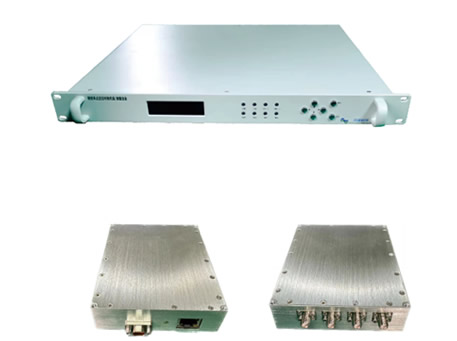

Appearance

Weight

Chassis: 15kg Module: <350g

Size

Chassis: 1U or 2U Module: 110*91*25mm
